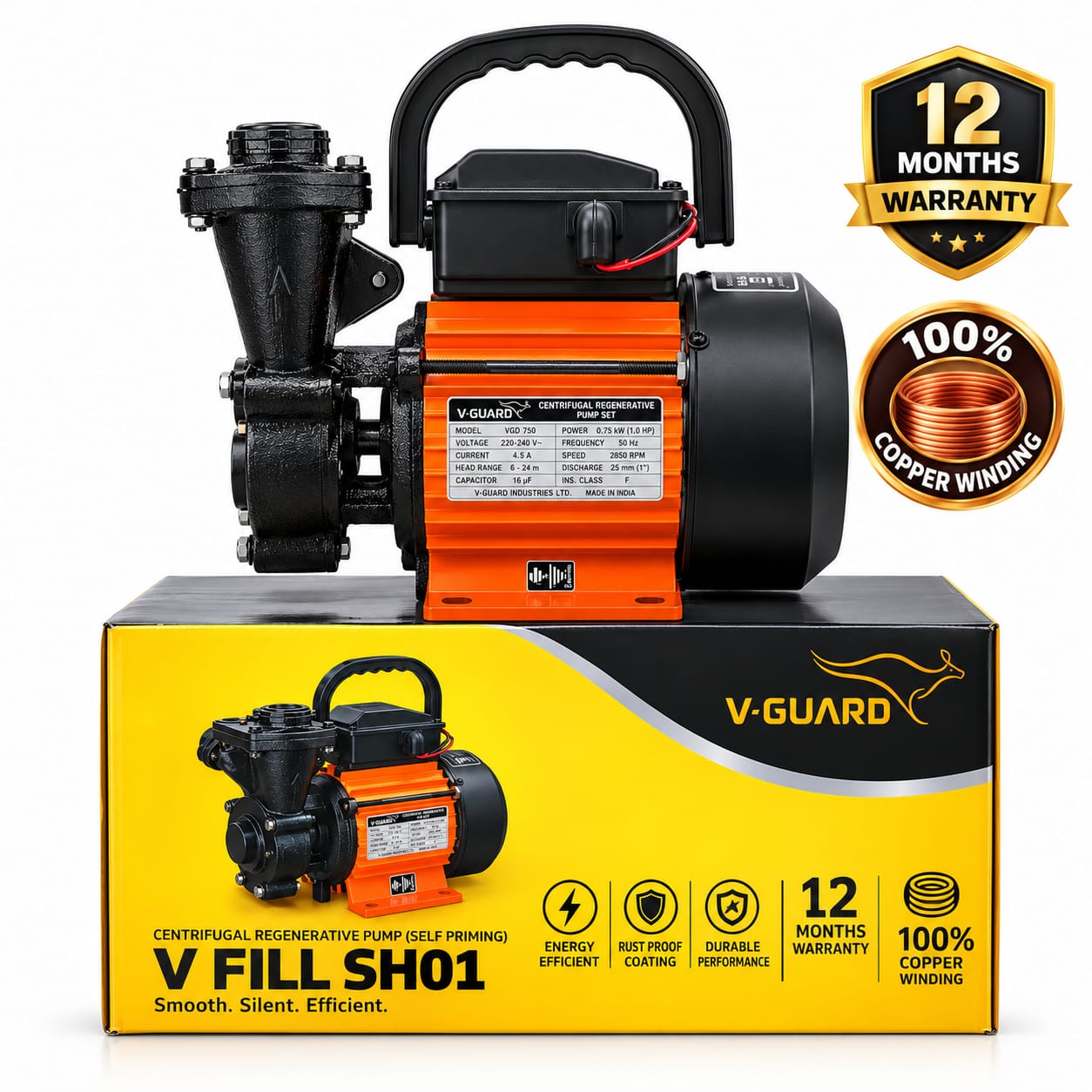

V-Guard VFILL SH01 0.5 HP

The V-Guard VFILL SH01 (0.5 HP) is a self-priming centrifugal (monoblock) water pump designed mainly for domestic use. It is suitable for water transfer, tank filling, and boosting pressure in small homes.

Key Features :-

• Power: 0.5 HP (0.37 kW)
• Type: Self-priming centrifugal pump
• Phase: Single-phase (240 V, 50 Hz)
• Duty: Continuous (S1 duty)
• Current: ~2.25 A
• Pipe size: 1" × 1" (25 mm)

Performance :-

• Head range (lifting height): approx. 6–24 meters
• Best performance point: ~16 meters head
• Discharge: up to 750 LPH

Build & Design :-

• Aluminium powder-coated body → rust-resistant
• Copper winding motor → better efficiency and durability
• Alloy steel shaft → strong and long-lasting
• Rubber-sealed ball bearings → smooth & low-noise operation
• Class B insulation → motor safety
